Sea-Doo 140mm Replacement Wear-Ring (290) (SKU: 003-500)
Sea-Doo 140mm Replacement Wear-Ring (290) (SKU: 003-500)
Specifications

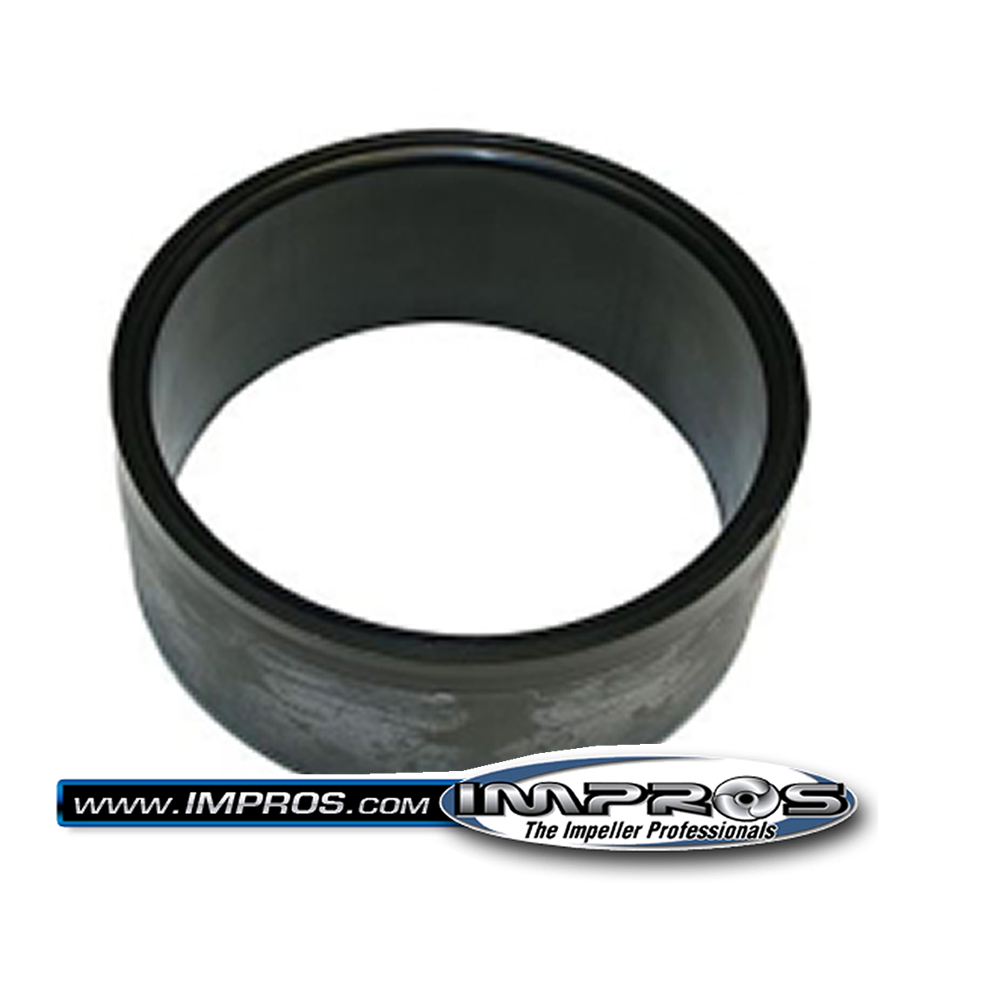

This is an aftermarket WSM plastic replacement wear-ring for the 140mm pumps. It does the same job as the OEM wear-ring at a much lower price.
As the wear-ring becomes worn, or is damaged from debris, the gap between it and the impeller grows, creating cavitation (mostly felt upon take-off, and performance loss. This is an important area to service and replace when necessary.
This 140mm wear-ring replaces OEM P/N 271000002, 271000101, 271000290.
This wear-ring may also fit models not listed here. Please consult your parts book or contact us if you need any help.
WSM# 003-500
Models
Application fits models listed below:
Challenger 720 1998,2000-2001
Challenger 800 1996-1997
Challenger 1800 8001997-1999
Explorer 580 1993
Explorer 650 1994-1996
Explorer 720 1997,2002
GS 720 1997-2001
GSI 720 1997
GSX 800 1996-1997
GSX RFI 800 1999-2000
GT 580 1990-1991
GTI 720 1996-2000
GTS 580 1992-1996
GTS 720 1997-2000
GTX 580 1992-1993
GTX 650 1994-1995
GTX 800 1996-1997
GTX RFI 800 1998-2002
HX 720 1995-1997
SP 580 1989-1996
SP 720 1997
Speedster 650 1994-1995
Speedster 720 1996-1999
Speedster 800 1999
SPI 580 1993-1996
Sportster 650 1995
Sportster 720 1996-2000
Sportster 1800 7201998-1999
Sportster LT 720 2002
SPX 580 1993
SPX 650 1994-1995
SPX 720 1996
SPX 800 1997-1999
XP 580 1991-1992
XP 650 1993-1994
XP 720 1995
XP 800 1995-1997
XPI 650 1994
Model Years
- 1988
- 1989
- 1990
- 1991
- 1992
- 1994
- 1995
- 1996
- 2000
- 2001
- 2002
- 2003
- 1993
- 1997
- 1998
- 1999
Engine
580|650|720|785|800
Pitch Availability
FAQs
See All
How do I change the impeller in my craft?
Impros has complete impeller installation instructions for Yamaha, Sea-Doo, Kawasaki and Polaris PWC. See Impeller Installation instructions for the person that likes to get in there and do things themselves.
Does Impros balance each impeller they service?
Yes. Each and every impeller that we service is checked for accurate balance within 2/10ths of a gram. Slight rock damage and especially with impellers requiring weld, checking the balance is absolutely required with PWC impellers. Sometimes we’ll find new impellers out of balance right out of the box. We balance each impeller as the finish is applied, eliminating any chance of throwing it out of balance during the polishing process. These measures are proudly taken to insure our customers the highest quality impeller repair available. Ask our competition if and how they balance impellers, we’ve found that they typically rely on the original factory balance.
Does Impros use correct pitching techniques specific to each brand of impeller?
Yes, Impros is proud of our ability to pitch each brand impeller to the manufacture’s specific range of blade angle variation. Impros has a master gauge for every stainless-steel impeller made, assuring an accurate pitch and uncompromised performance, eliminating common guesswork. Each and every manufacturer builds the impeller geometrically different from one another and gauges the outer blade angle in a different way. Only a company with experience will accurately understand, manipulate and repair the blades of the impeller to its original state.
