Yamaha 144mm Replacement Pump Liner (6R8) (SKU:003-521-1)
Yamaha 144mm Replacement Pump Liner (6R8) (SKU:003-521-1)
Specifications
Specifications

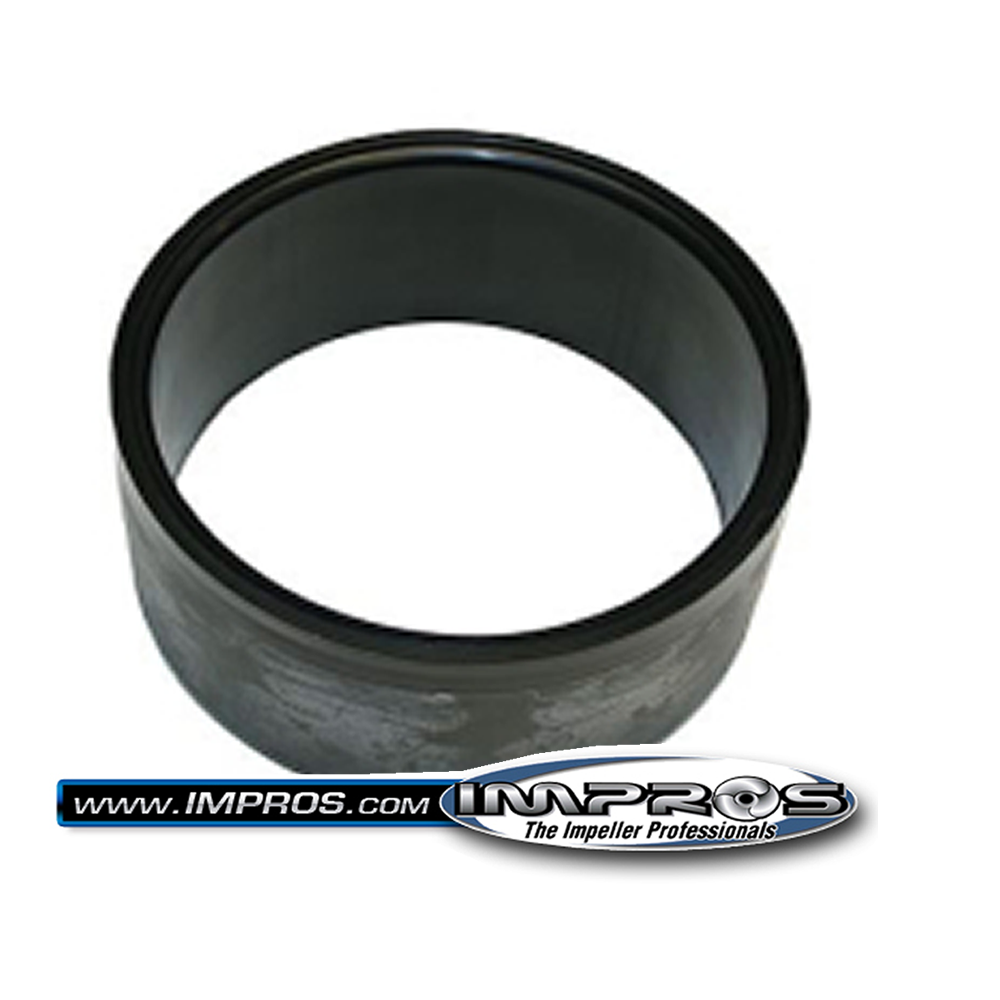

Yamaha 144mm Replacement Pump Liner (6R8) | WSM 003-521-1
The WSM 003-521-1 Yamaha 144mm Replacement Pump Liner is a direct replacement wear ring liner designed for WSM aluminum jet pump housings utilizing the Yamaha 6R8 pump system. This replaceable liner restores proper impeller clearance and pump efficiency without the expense of replacing the entire pump housing.
Over time, the pump liner can become worn or damaged from rocks, sand, debris, cavitation, or failing pump bearings. As the gap between the impeller and liner increases, pump performance suffers, resulting in cavitation, reduced acceleration, poor hook-up, and loss of top speed.
The serviceable WSM design allows you to simply remove the damaged liner and install a new replacement, restoring factory-like clearances and maximizing pump performance. This cost-effective solution helps extend the life of your aluminum pump housing while maintaining optimal jet pump efficiency.
Manufactured from durable, wear-resistant materials, the WSM replacement liner is engineered to withstand harsh marine environments and demanding riding conditions.
Features
Designed specifically for WSM Yamaha 144mm aluminum pump housings using the 6R8 pump system. Restores proper impeller-to-liner clearance, improves pump efficiency, and eliminates the need to replace the complete housing. Durable construction provides excellent wear resistance and long service life.
Benefits
Helps reduce cavitation, restore acceleration, improve hook-up, and maximize pump performance. Cost-effective maintenance solution that extends the life of your jet pump housing.
Common Applications
- Yamaha WaveRunner Models Using 6R8 144mm Pumps
- Yamaha VX Series
- Yamaha VXR
- Yamaha VXS
- Yamaha FZS
- Yamaha FZR
- Yamaha FX Series
- WSM Aluminum Pump Housings
- Performance and Recreational Watercraft
Common Symptoms of a Worn Pump Liner
- Cavitation During Takeoff
- Reduced Acceleration
- Poor Hook-Up
- Excessive Impeller Clearance
- Loss of Top Speed
- Decreased Pump Efficiency
Part Number
WSM 003-521-1
Please verify your pump housing uses the WSM replaceable liner system and Yamaha 6R8 pump configuration before ordering.
Models
Models
Application fits models listed below:
Yamaha GP 760 1999-2000
Yamaha GP 800 1998-2000
Yamaha SuperJet 650 1990-1993
Yamaha SuperJet 700 1995-2020
Yamaha VXR 650 1991-1995
Yamaha VXR Pro 700 1993-1994
Yamaha Wave Blaster 700 1993-1996
Yamaha Wave Raider 700 1994-1997
Yamaha Wave Raider 760 1996
Yamaha Wave Runner 760 1997-1998
Yamaha Wave Runner III 650 1992-1993,1995-1996
Yamaha Wave Venture 700 1995-1996
Note: This liner is only to be used in the 6R8 Aluminum housing also listed in our pump section.
Model Years
Model Years
- 1990
- 1991
- 1992
- 1994
- 1995
- 1996
- 2000
- 1993
- 1997
- 1998
- 1999
Engine
Engine
700|760|800
FAQs
See All
How do I change the impeller in my craft?
Impros has complete impeller installation instructions for Yamaha, Sea-Doo, Kawasaki and Polaris PWC. See Impeller Installation instructions for the person that likes to get in there and do things themselves.
Does Impros balance each impeller they service?
Yes. Each and every impeller that we service is checked for accurate balance within 2/10ths of a gram. Slight rock damage and especially with impellers requiring weld, checking the balance is absolutely required with PWC impellers. Sometimes we’ll find new impellers out of balance right out of the box. We balance each impeller as the finish is applied, eliminating any chance of throwing it out of balance during the polishing process. These measures are proudly taken to insure our customers the highest quality impeller repair available. Ask our competition if and how they balance impellers, we’ve found that they typically rely on the original factory balance.
Does Impros use correct pitching techniques specific to each brand of impeller?
Yes, Impros is proud of our ability to pitch each brand impeller to the manufacture’s specific range of blade angle variation. Impros has a master gauge for every stainless-steel impeller made, assuring an accurate pitch and uncompromised performance, eliminating common guesswork. Each and every manufacturer builds the impeller geometrically different from one another and gauges the outer blade angle in a different way. Only a company with experience will accurately understand, manipulate and repair the blades of the impeller to its original state.
