Yamaha 144mm Jet Pump Housing (6R8) (SKU: 003-506)
Yamaha 144mm Jet Pump Housing (6R8) (SKU: 003-506)
Specifications
Specifications

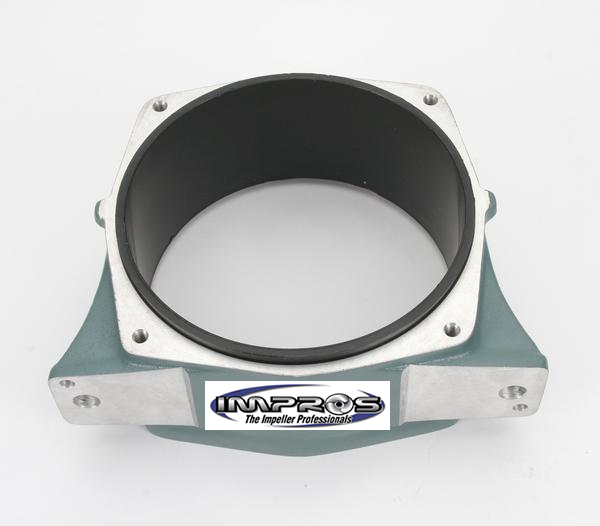

Yamaha 144mm Jet Pump Housing (6R8) | WSM 003-506
The WSM 003-506 Yamaha 144mm Jet Pump Housing is a premium aftermarket replacement designed for Yamaha personal watercraft equipped with the 6R8 pump system. Manufactured from durable marine-grade aluminum, this housing is a direct replacement for the OEM Yamaha pump housing while offering the added benefit of a serviceable replaceable plastic wear ring.
Unlike the factory housing that utilizes a thin stainless-steel liner, the WSM design incorporates a replaceable plastic wear ring that can be easily replaced when worn or damaged. This allows you to restore proper impeller clearance and pump efficiency without the expense of replacing the entire housing assembly.
Over time, wear rings can become damaged from rocks, debris, cavitation, or failing bearings. Excessive clearance between the impeller and wear ring can result in cavitation, poor acceleration, reduced hook-up, and loss of top speed. The WSM replaceable liner system makes maintenance simple and affordable while helping maintain peak jet pump performance.
Designed to meet or exceed OEM specifications, this housing is ideal for stock replacements, pump rebuilds, and performance applications.
Features
Direct replacement Yamaha 144mm jet pump housing manufactured from high-strength marine-grade aluminum. Includes a replaceable plastic wear ring for easy servicing and lower long-term maintenance costs. Designed to restore proper impeller clearance, pump efficiency, and overall watercraft performance.
Benefits
Helps reduce cavitation, improve acceleration, increase hook-up, and maintain top speed. Replaceable wear ring design eliminates the need to replace the entire housing when wear occurs. Durable aluminum construction provides excellent strength and corrosion resistance.
Includes
- Yamaha 144mm Aluminum Pump Housing
- Replaceable Plastic Wear Ring
- Ready for Installation
Replaces OEM Part Numbers
- 6R8-51312-00-94
- 6R8-51312-01-94
- 6R8-51312-02-94
- 6R8-51312-03-94
Common Applications
- Yamaha VX Series
- Yamaha VX Cruiser
- Yamaha VXR
- Yamaha VXS
- Yamaha FX Series
- Yamaha FZR
- Yamaha FZS
- Yamaha WaveRunner Models Equipped with 6R8 144mm Pumps
- Recreational and Performance Watercraft
Why Choose a Replaceable Wear Ring Housing?
When a wear ring becomes damaged from rocks, debris, cavitation, or worn bearings, the WSM replaceable liner system allows you to install a new liner instead of replacing the complete housing. This reduces maintenance costs and helps keep your jet pump operating at maximum efficiency.
Part Number
WSM 003-506
Models
Models
Application fits models listed below:
Yamaha GP 7601999-2000
Yamaha GP 8001998-2000
Yamaha Wave Raider 7001994-1996
Yamaha Wave Raider 7601996
Yamaha Wave Runner 7601997-1998
Yamaha Wave Runner III 6501990-1993,1995-1996
Yamaha Wave Runner III 7001994-1995,1997
Yamaha Wave Runner LX 6501991-1993
Yamaha Wave Venture 7001995-1996
Replaces pump housing P/N 6R8-51312-02-94. and 03-94.
Model Years
Model Years
- 1990
- 1991
- 1992
- 1994
- 1995
- 1996
- 2000
- 1993
- 1997
- 1998
- 1999
Engine
Engine
650|700|784|800
FAQs
See All
How do I change the impeller in my craft?
Impros has complete impeller installation instructions for Yamaha, Sea-Doo, Kawasaki and Polaris PWC. See Impeller Installation instructions for the person that likes to get in there and do things themselves.
Does Impros balance each impeller they service?
Yes. Each and every impeller that we service is checked for accurate balance within 2/10ths of a gram. Slight rock damage and especially with impellers requiring weld, checking the balance is absolutely required with PWC impellers. Sometimes we’ll find new impellers out of balance right out of the box. We balance each impeller as the finish is applied, eliminating any chance of throwing it out of balance during the polishing process. These measures are proudly taken to insure our customers the highest quality impeller repair available. Ask our competition if and how they balance impellers, we’ve found that they typically rely on the original factory balance.
Does Impros use correct pitching techniques specific to each brand of impeller?
Yes, Impros is proud of our ability to pitch each brand impeller to the manufacture’s specific range of blade angle variation. Impros has a master gauge for every stainless-steel impeller made, assuring an accurate pitch and uncompromised performance, eliminating common guesswork. Each and every manufacturer builds the impeller geometrically different from one another and gauges the outer blade angle in a different way. Only a company with experience will accurately understand, manipulate and repair the blades of the impeller to its original state.
Customer Reviews
-
The best there is!! If you want true personalized impeller and/or pump service this is it. One word describes it all: Quality."
Tim C.Verified Customer -
"Big thank you to Glen for the quick turnaround, outstanding customer service, and honesty. I ended up choosing the race finish and couldn't be happier with the final result!"
C. KunamayVerified Customer -
"Solid support when I had an issue. Immediately fixed. Wish all businesses operated like this, thanks!"
John H.Verified Customer
