Sea-Doo 159mm Replacement Wear-Ring (105) (SKU: 003-499)
Sea-Doo 159mm Replacement Wear-Ring (105) (SKU: 003-499)
Specifications
Specifications

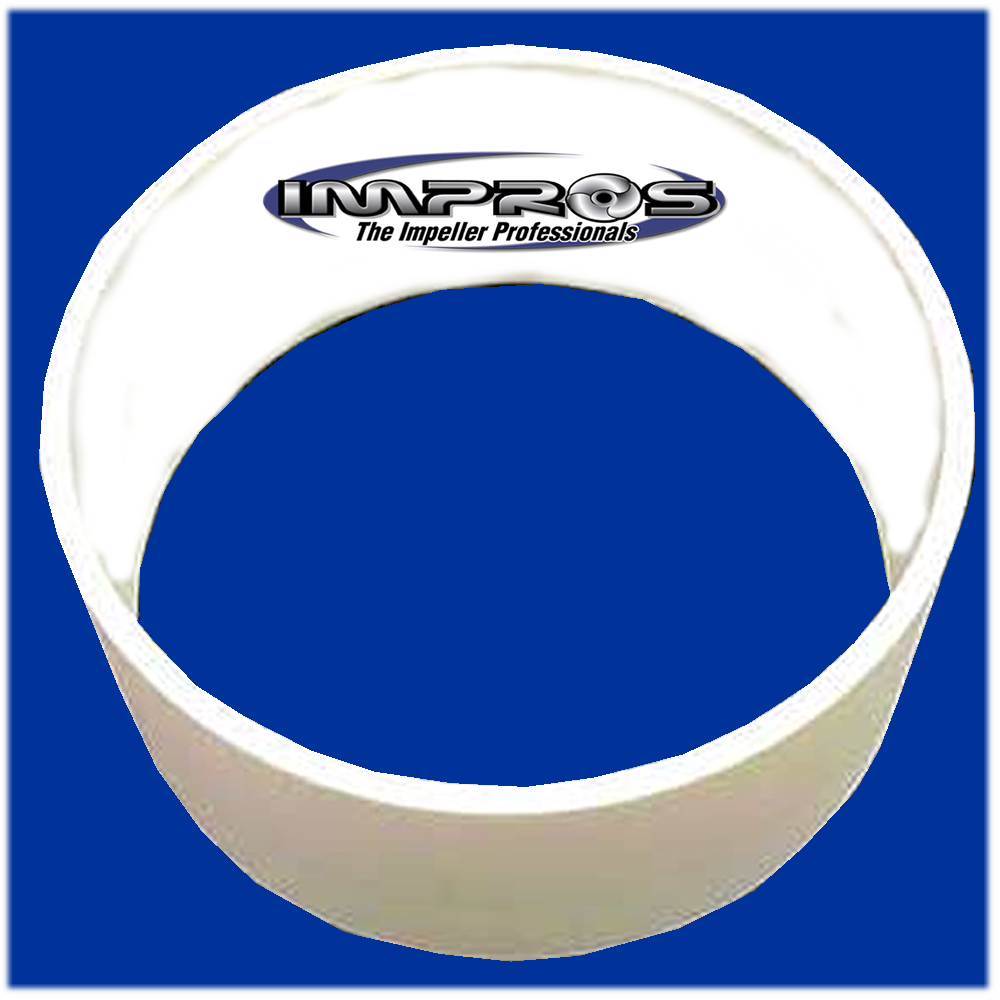

Sea-Doo 159mm Replacement Wear Ring (105) | WSM 003-499
The WSM 003-499 Sea-Doo 159mm Replacement Wear Ring is a high-quality aftermarket replacement designed for Sea-Doo personal watercraft equipped with 159mm jet pumps. Commonly found on 1494cc supercharged models producing 215 HP and 255 HP, this wear ring restores proper impeller clearance and helps maintain maximum jet pump efficiency.
Over time, wear rings can become damaged from rocks, sand, debris, cavitation, or normal wear. As the clearance between the impeller and wear ring increases, pump performance decreases, often causing cavitation during takeoff, reduced acceleration, poor hook-up, and loss of top speed. Replacing a worn wear ring is one of the most effective ways to restore lost performance and improve overall ride quality.
Manufactured from durable marine-grade composite material, the WSM wear ring provides excellent wear resistance while maintaining tight tolerances for maximum pump efficiency. It is designed as a direct replacement for the OEM wear ring and installs into the factory pump housing.
Features
The WSM 003-499 wear ring is designed specifically for Sea-Doo 159mm pump systems. Precision manufacturing restores proper impeller clearance and helps maximize acceleration, hook-up, and pump efficiency.
Benefits
Reduces cavitation, restores acceleration, improves throttle response, increases pump efficiency, and helps maintain top speed. Durable construction provides long service life in both freshwater and saltwater environments.
Replaces OEM Part Number
- Sea-Doo 267000338
Common Applications
- Sea-Doo RXP
- Sea-Doo RXT
- Sea-Doo RXT-X
- Sea-Doo GTX Supercharged
- Sea-Doo GTX Limited
- Sea-Doo Wake Pro
- Sea-Doo 215 HP Models
- Sea-Doo 255 HP Models
- Sea-Doo 1494cc Supercharged Models
- Other Sea-Doo Watercraft Equipped with 159mm Pumps
Common Symptoms of a Worn Wear Ring
- Cavitation During Takeoff
- Reduced Acceleration
- Poor Pump Hook-Up
- Loss of Top Speed
- Increased Impeller Clearance
- Reduced Pump Efficiency
Why Replace Your Wear Ring?
A properly fitted wear ring is critical for jet pump performance. Replacing a worn wear ring restores pump efficiency, reduces cavitation, improves acceleration, and helps your Sea-Doo perform at its best.
Part Number
WSM 003-499
Models
Models
Application fits models listed below:
Challenger / SE 215 1503 2007-2011
Challenger S/C 215 1503 2007-2009
Challenger SE 2 x 215 1503 2012
Challenger SE 2 x 260 1503 2012
Challenger SE 255 1503 2009-2011
Challenger SE 430 1503 2008-2011
Challenger SE 510 1503 2010-2011
Challenger SP 215 1503 2009
Challenger SP 430 1503 2010-2011
Challenger Wake 430 1503 2008
Challenger Wake S/C 215 1503 2007
GTI DTF 1503 2016
GTI LTD 155 1503 2016
GTI SE 155 1503 2016
GTR 215 1503 2012-2016
GTS 130 1503 2016
GTX 215 1503 2008-2009, 2011-2013
GTX IS 215 1503 2010-2011
GTX LTD 215 1503 2008, 2014-2016
GTX LTD 230 1503 2017
GTX LTD IS 255 1503 2009
GTX LTD IS 260 1503 2010-2016
GTX LTD SCIC 1503 2007
GTX P LTD 230 1503 2018
GTX P STD 230 1503 2018
GTX SCIC 1503 2007
GTXS LTD 260 1503 2017
Islandia SE 215 1503 2009
Islandia SE 430 1503 2008
RXP 155 S/C 1503 2008
RXP 215 1503 2009
RXP BVIC 1503 2007
RXP S/C 1503 2004
RXP X 255 1503 2008-2011
RXP X 260 1503 2012-2015
RXT 215 1503 2009-2010
RXT 260 1503 2011-2016
RXT IS 255 1503 2009
RXT IS 260 1503 2010-2012
RXT SCIC 1503 2007
RXT STD 230 1503 2018
RXT STD 260 1503 2017
RXT STDRS 260 1503 2017
RXT X 255 1503 2008-2009
RXT X 260 1503 2010-2015
RXT X AS 260 1503 2011-2016
SP 2 x 215 1503 2012
SP 2 x 260 1503 2012
Speedster 1 x 260 1503 2012
Speedster 2 x 255 1503 2012
Speedster 215 1503 2007-2009
Speedster 255 1503 2009-2011
Speedster 430 1503 2008
Speedster 510 1503 2010-2011
Speedster Wake 215 1503 2009
Speedster Wake 430 1503 2008
Utopia / SE 215 1503 2009
Utopia SE 430 1503 2008
Wake / SE 430 1503 2010-2011
Wake / SE 510 1503 2010-2011
Wake 155 1503 2016
Wake 2 x 215 1503 2012
Wake 2 x 260 1503 2012
Wake 215 1503 2008-2009
Wake 215 1503 2008-2009
Wake 255 1503 2009
Wake P Pro 230 1503 2018
Wake Pro 215 1503 2009-2016
Wake Pro 230 1503 2017
Model Years
Model Years
- 2004
- 2005
- 2006
- 2007
- 2008
- 2009
- 2010
Engine
Engine
1494
FAQs
See All
How do I change the impeller in my craft?
Impros has complete impeller installation instructions for Yamaha, Sea-Doo, Kawasaki and Polaris PWC. See Impeller Installation instructions for the person that likes to get in there and do things themselves.
Does Impros balance each impeller they service?
Yes. Each and every impeller that we service is checked for accurate balance within 2/10ths of a gram. Slight rock damage and especially with impellers requiring weld, checking the balance is absolutely required with PWC impellers. Sometimes we’ll find new impellers out of balance right out of the box. We balance each impeller as the finish is applied, eliminating any chance of throwing it out of balance during the polishing process. These measures are proudly taken to insure our customers the highest quality impeller repair available. Ask our competition if and how they balance impellers, we’ve found that they typically rely on the original factory balance.
Does Impros use correct pitching techniques specific to each brand of impeller?
Yes, Impros is proud of our ability to pitch each brand impeller to the manufacture’s specific range of blade angle variation. Impros has a master gauge for every stainless-steel impeller made, assuring an accurate pitch and uncompromised performance, eliminating common guesswork. Each and every manufacturer builds the impeller geometrically different from one another and gauges the outer blade angle in a different way. Only a company with experience will accurately understand, manipulate and repair the blades of the impeller to its original state.
